WhatsApp Memory Assistant

A sophisticated AI-powered WhatsApp chatbot that ingests, stores, and recalls multimodal memories (text, images, audio) with advanced features like mood detection, geo-tagging, and semantic search.

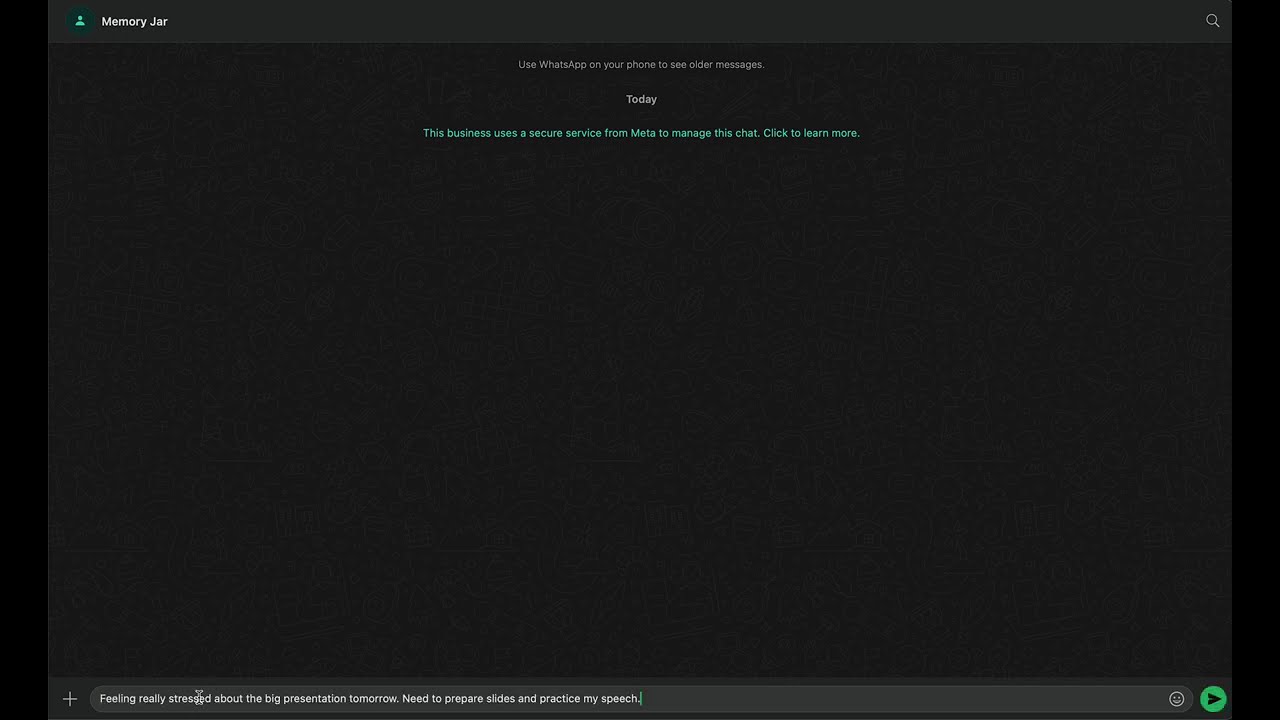

🎥 Demo Video

📺 Watch Full Demo - See the complete WhatsApp Memory Assistant in action!

🌟 Features

Core Functionality

• Multimodal Ingestion: Process text messages, images, and voice notes
• Semantic Memory Storage: Powered by Mem0 for intelligent retrieval
• Natural Language Queries: Search memories using conversational language
• Database Persistence: Custom PostgreSQL schema with full analytics
• Idempotent Processing: Duplicate message prevention using Twilio MessageSid
• Media Deduplication: SHA-256 fingerprinting to avoid storing identical files

Innovative Features

• 🧠 AI Mood Detection: Emotional analysis of messages and media
• 📍 Geo-tagging: Automatic location extraction and memory geo-tagging
• ⏰ Smart Reminders: Natural language reminder scheduling
• 🔗 Memory Sharing: Share memories between WhatsApp users
• 📊 Analytics Dashboard: Comprehensive usage statistics and insights
• 🌍 Timezone Awareness: Support for queries like "last week" in user's timezone

🏗 Architecture

Tech Stack

• Backend: Node.js + TypeScript + Express.js
• Database: PostgreSQL with Prisma ORM
• AI Services: OpenAI (Whisper, GPT-4), Mem0 Memory Layer
• WhatsApp: Twilio WhatsApp Business API
• Storage: Local file system with deduplication
• Testing: Jest with comprehensive test coverage

Database Schema

Users → Interactions → Memories
  ↓         ↓           ↓
MediaFiles ← Analytics  Reminders
  ↓
SharedMemories

🚀 Quick Start

Prerequisites

• Node.js 18+ and npm
• PostgreSQL database
• Twilio WhatsApp Business account
• OpenAI API key
• Mem0 API key

1. Environment Setup

# Clone repository
git clone https://github.com/deepam-kapur/memory-jar.git
cd memory-jar

# Install dependencies
npm install

# Copy environment template
cp .env.example .env

2. Configure Environment Variables

# Database
DATABASE_URL="postgresql://user:password@localhost:5432/memory_jar"

# Twilio WhatsApp
TWILIO_ACCOUNT_SID="your_account_sid"
TWILIO_AUTH_TOKEN="your_auth_token"
TWILIO_WHATSAPP_NUMBER="whatsapp:+1234567890"
TWILIO_WEBHOOK_URL="https://your-domain.com/webhook"

# AI Services
OPENAI_API_KEY="sk-..."
MEM0_API_KEY="your_mem0_api_key"

# Application
NODE_ENV="development"
PORT=3000
LOG_LEVEL="info"

3. Database Setup

# Generate Prisma client
npm run db:generate

# Run database migrations
npm run db:migrate

# Seed initial data (optional)
npm run db:seed

4. Twilio WhatsApp Configuration

Step 1: Set up Twilio WhatsApp Sandbox

1. Log in to Twilio Console
2. Navigate to Messaging → Try it out → Send a WhatsApp message
3. Follow sandbox setup instructions
4. Note your sandbox number and join code

Step 2: Configure Webhook

1. In Twilio Console, go to Phone Numbers → Manage → WhatsApp senders
2. Select your WhatsApp number
3. Set webhook URL: https://your-domain.com/webhook
4. Set HTTP method to POST
5. Save configuration

Step 3: Enable ngrok for Local Development

# Install ngrok
npm install -g ngrok

# Expose local server
ngrok http 3000

# Update TWILIO_WEBHOOK_URL in .env with ngrok URL

5. Start the Application

# Development mode with hot reload
npm run dev

# Production build
npm run build
npm start

# Run tests
npm test

📱 Usage

WhatsApp Commands

• Send any message: Creates a memory with AI analysis
• Send image: Processes and stores with visual analysis
• Send voice note: Transcribes audio and stores with mood detection
• "/list": Shows all your memories
• "remind me...": Creates smart reminders
• Search queries: "When was I stressed?", "Show me happy memories"

API Endpoints

Core Endpoints

POST /webhook
# Handle incoming WhatsApp messages

GET /memories?query=<text>
# Search memories with natural language

GET /memories/list
# List all memories (newest first)

POST /memories
# Create memory manually

GET /interactions/recent?limit=<n>
# Get recent interactions

GET /analytics/summary
# Get usage statistics

Advanced Features

POST /reminders
# Create scheduled reminders

GET /reminders?status=PENDING
# List user reminders

POST /sharing/share
# Share memory with another user

GET /media/:filename
# Access stored media files

Example API Calls

Search Memories

curl "http://localhost:3000/memories?query=stressed%20this%20week"

Get Analytics

curl "http://localhost:3000/analytics/summary"

Recent Interactions

curl "http://localhost:3000/interactions/recent?limit=10"

🧪 Testing

Run Test Suite

# All tests
npm test

# Watch mode
npm run test:watch

# Coverage report
npm run test:coverage

Test Coverage

• Controllers: Webhook, Memory, Analytics, Reminders
• Services: Multimodal processing, Mood detection, Geo-tagging
• API Endpoints: All CRUD operations and search functionality
• Database: Schema validation and data integrity
• Integration: End-to-end WhatsApp message flow

📊 Database Design

Key Design Decisions

1. Idempotent Processing

• Uses Twilio MessageSid as unique constraint
• Prevents duplicate processing of same message
• Maintains data consistency

2. Media Deduplication

• SHA-256 fingerprinting of media content
• Reference counting for shared media
• Significant storage optimization

3. Timezone Awareness

• User timezone detection from phone number
• Relative time query support ("last week", "yesterday")
• Consistent timestamp handling

4. Memory Linkage

• Every memory traces back to source interaction
• Maintains audit trail and context
• Enables advanced analytics

Schema Overview

-- Core entities
Users (id, phoneNumber, timezone, ...)
Interactions (id, userId, messageSid, messageType, ...)
Memories (id, userId, interactionId, content, mem0Id, ...)
MediaFiles (id, userId, fingerprint, fileUrl, ...)

-- Feature entities
Reminders (id, userId, memoryId, scheduledFor, ...)
SharedMemories (id, fromUserId, toUserId, memoryId, ...)
Analytics (id, eventType, metadata, timestamp, ...)

🔧 Deployment

Docker Deployment

FROM node:18-alpine
WORKDIR /app
COPY package*.json ./
RUN npm ci --only=production
COPY dist ./dist
COPY prisma ./prisma
RUN npx prisma generate
EXPOSE 3000
CMD ["npm", "start"]

Environment Setup

1. Production Database: Set up PostgreSQL with proper credentials
2. Twilio Configuration: Update webhook URL to production domain
3. File Storage: Configure persistent storage for media files
4. Monitoring: Set up logging and error tracking
5. SSL/TLS: Ensure HTTPS for webhook security

Health Checks

# Application health
curl https://your-domain.com/health

# Database connectivity
curl https://your-domain.com/analytics/summary

🛠 Development

Project Structure

src/
├── controllers/     # Request handlers
├── services/        # Business logic
├── routes/          # API routing
├── middleware/      # Express middleware
├── config/          # Configuration
├── utils/           # Helper functions
├── validation/      # Input validation schemas
├── types/           # TypeScript definitions
└── __tests__/       # Test files

prisma/
├── schema.prisma    # Database schema
└── migrations/      # Database migrations

scripts/
├── seed.ts          # Database seeding
├── reset-database.sh # Database reset utility
└── clear-*.sql      # Database cleanup scripts

Code Quality

• TypeScript: Strict type checking
• ESLint: Code linting and formatting
• Prettier: Code formatting
• Jest: Unit and integration testing
• Prisma: Type-safe database operations

Adding New Features

1. Define API contract in routes/
2. Implement business logic in services/
3. Add database models in schema.prisma
4. Write tests in tests/
5. Update documentation

📈 Analytics & Monitoring

Available Metrics

• Usage Statistics: Total users, memories, interactions
• Content Analysis: Memory types, mood distribution
• Performance: Response times, error rates
• Feature Adoption: Reminder usage, sharing activity

Monitoring Setup

// Custom metrics example
logger.info('Memory created', {
  userId,
  memoryType,
  processingTime: Date.now() - startTime,
  moodDetected: mood?.mood,
  hasLocation: !!geoTag
});

🔐 Security

Data Protection

• Input Validation: Zod schema validation on all inputs
• SQL Injection Prevention: Prisma ORM with parameterized queries
• Rate Limiting: Express rate limiting middleware
• CORS Configuration: Restricted cross-origin requests
• Helmet.js: Security headers and XSS protection

Privacy Considerations

• Media Storage: Local storage with access controls
• User Data: Minimal data collection with explicit consent
• Audit Trail: Complete interaction logging for compliance

🤝 Contributing

Development Setup

1. Fork the repository
2. Create feature branch: git checkout -b feature/amazing-feature
3. Make changes and add tests
4. Run test suite: npm test
5. Commit changes: git commit -m 'Add amazing feature'
6. Push to branch: git push origin feature/amazing-feature
7. Open Pull Request

Code Standards

• Follow TypeScript best practices
• Write comprehensive tests for new features
• Update documentation for API changes
• Use conventional commit messages

📞 Support

• Documentation: API Documentation
• Demo: Demo Video

📄 License

This project is licensed under the ISC License - see the LICENSE file for details.

🙏 Acknowledgments

• Twilio: WhatsApp Business API
• OpenAI: Whisper transcription and GPT analysis
• Mem0: Memory layer and semantic search
• Prisma: Database ORM and migrations
• Express.js: Web framework

---

Built with ❤️ for intelligent memory management through WhatsApp
