RecipeBot

RecipeBot is a project by Colin Cassady and Kerry Jones for the Machine Vision and Language course at University of Virginia. The intent is to teach a deep neural network to guess the ingredients of a dish simply through viewing an image of it.

Required Libraries and Packages

SQLite TensorFlow Keras Numpy Urlib Scikit-Learn Scikit-Image Matplotlib Bokeh

yummly.db schema

• ID is a guid
• JSON is all data returned from yummly per recipe
• Title is the title of the recipe
• Ingredients is a semicolon delimited string of unprocessed ingredients
• ImageUrl contains the url to the image on yummly.co
• Description is a short description of the dish
• Url holds the url to the recipe page on yummly.co
• Course is the course of the dish in context of different types of meals. (Breakfast, dessert, drinks etc.)
• CleanIngredients is a semicolon delimited string of processed ingredients
• ImageAvailable describes whether or not an image exists for a given recipe (some don't have images)
• English describes whether or not the recipe was written in the English language

To make this table, open SQLite in the desired folder and paste the following table creation statement:

CREATE TABLE Recipe(
   ID TEXT PRIMARY KEY     NOT NULL,
   JSON TEXT    NOT NULL,
   Title TEXT,
   Ingredients TEXT,
   ImageUrl TEXT,
   Description TEXT,
   Url TEXT,
   Course TEXT,
   CleanIngredients TEXT,
   ImageAvailable INT,
   English INT);

Flow of the project

The project generally flows in the following script order.

scrapingyummly.py Queries yummly.co for the search term 'recipe', and iterates through all of the results, storing them in yummly.db.

downloadimages.py Reads all image URL and ID's from yummly.db, then downloads all images contained within.

resizingImages.py Resizes all images in the folder 'images' to 224x224 (input size of VGG) and stores them in folder 'resized_thumbs'. This allows for faster training.

markImagelessRecipes.py Iterates through all files in resized_thumbs and for each one found sets ImageAvailable=1 in yummly.db

wranglingIngredients.py Attempts to clean the ingredients from each recipe, storing the cleaned ingredients in the CleanIngredients column of yummly.db (e.g. 1 cup low fat cottage cheese => cottage cheese)

IngredientsPredictionModel.ipynb Defines and trains the network.

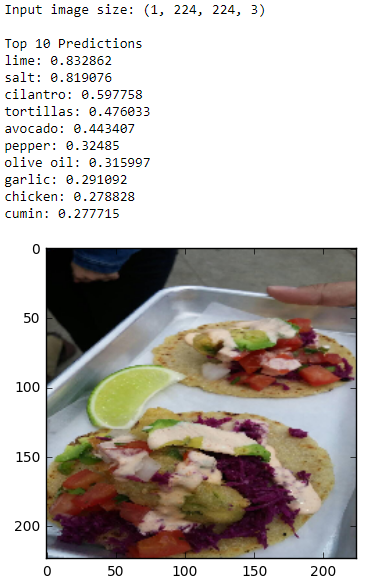

Sample Output
