MV PIPE - Oracle Database Load Monitoring Dashboard

MV PIPE is a desktop application built with Electron + React (Vite) to monitor heavy data load operations in Oracle databases. It provides a real-time dashboard focused on active sessions, performance impact, and resource consumption.

Features

• Multi-connection management (one tab per database).

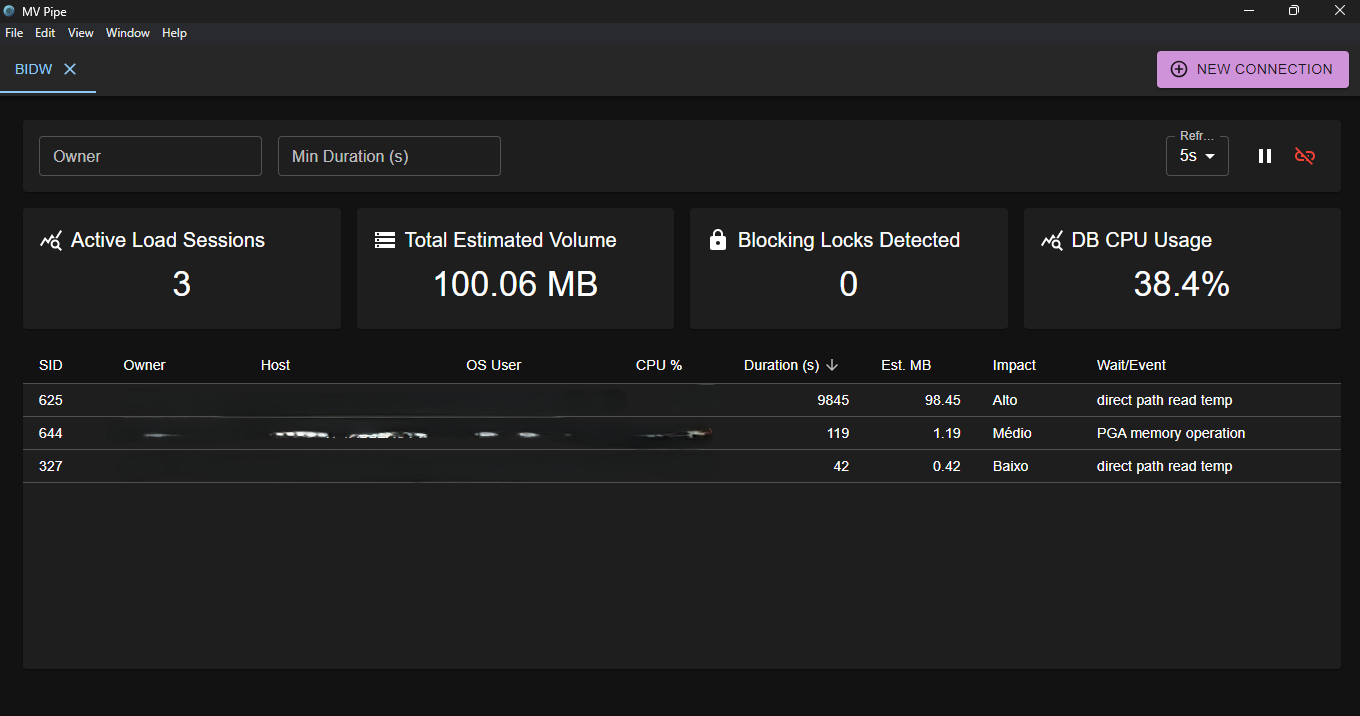

• Real-time dashboard for active load sessions and performance metrics.
• Summary cards for sessions, volume estimates, locks, and top tables.
• Detailed session table (SID, owner, operation, duration, estimated MB, impact).
• Client-side filtering by owner, operation, duration, impact, or table.
• Secure: passwords are kept in memory only (never written to disk).
• Fallback queries when access to v$sql is not available.

Tech Stack

• Electron (main process)
• React + TypeScript (renderer)
• Vite (build)
• Oracle connectivity via oracledb (thick mode)

---

Prerequisites

1. Node.js (LTS recommended).
2. Oracle Instant Client (required by node-oracledb).

Setup: Oracle Instant Client (Bundled)

This app uses a bundled Instant Client. You must download and place it inside the project before running or building.

Required Steps

1. Create the directory:

/vendor/instantclient

2. Download Oracle Instant Client (Basic or Basic Light).
3. Extract all files directly into vendor/instantclient (do not create an extra subfolder).

Expected folder structure

/vendor/instantclient
  adrci.exe
  BASIC_README
  oci.dll
  ociw32.dll
  oraociei19.dll
  ...

Note: vendor/ is ignored by Git and must not be committed.

---

Installation & Running

1. Install dependencies:

npm install

2. Run in development mode:

npm run dev

Building for Production (Windows)

npm run build

Artifacts are generated in dist/:

• dist/MV Pipe Setup 1.0.0.exe (installer to publish)
• dist/latest.yml (only needed if you later enable auto-update)
• dist/win-unpacked/ (unpacked app, useful for debugging)

To publish a manual release, share only the .exe installer. For auto-update in the future, publish the .exe and latest.yml (and any .blockmap files if present).

---

Versioning with GitHub Actions

The repository includes a workflow at .github/workflows/versioning.yml to update app version and create a Git tag.

How to run

1. Open Actions in GitHub.
2. Select Versioning.
3. Click Run workflow and provide a version in x.y.z format (example: 2.0.0).

The workflow will:

• update package.json and package-lock.json
• commit the change to the selected branch
• create tag v<version>
• push commit and tag to origin

---

Planning Helpers (Open Source)

To help organize larger features, this repository includes:

• issue draft example: docs/planning/v2-lock-screen-issue-drafts.md
• bulk issue creation script: scripts/create_lock_feature_issues.sh

Example usage:

./scripts/create_lock_feature_issues.sh TDamiao/MVPipe

This script requires authenticated GitHub CLI (gh auth login).

---

How to Use

1. Launch the app.
2. Click New Connection.
3. Fill in the Oracle connection details (prefer read-only access to v$ views).
4. Click Connect & Monitor.
5. A new tab opens and the dashboard starts polling.
