singkatin-api

Microservice-based URL shortener built with Go, implementing Layered Architecture with an NGINX API Gateway. Includes user authentication, a dashboard for managing short links with analytics, and a file upload pipeline.

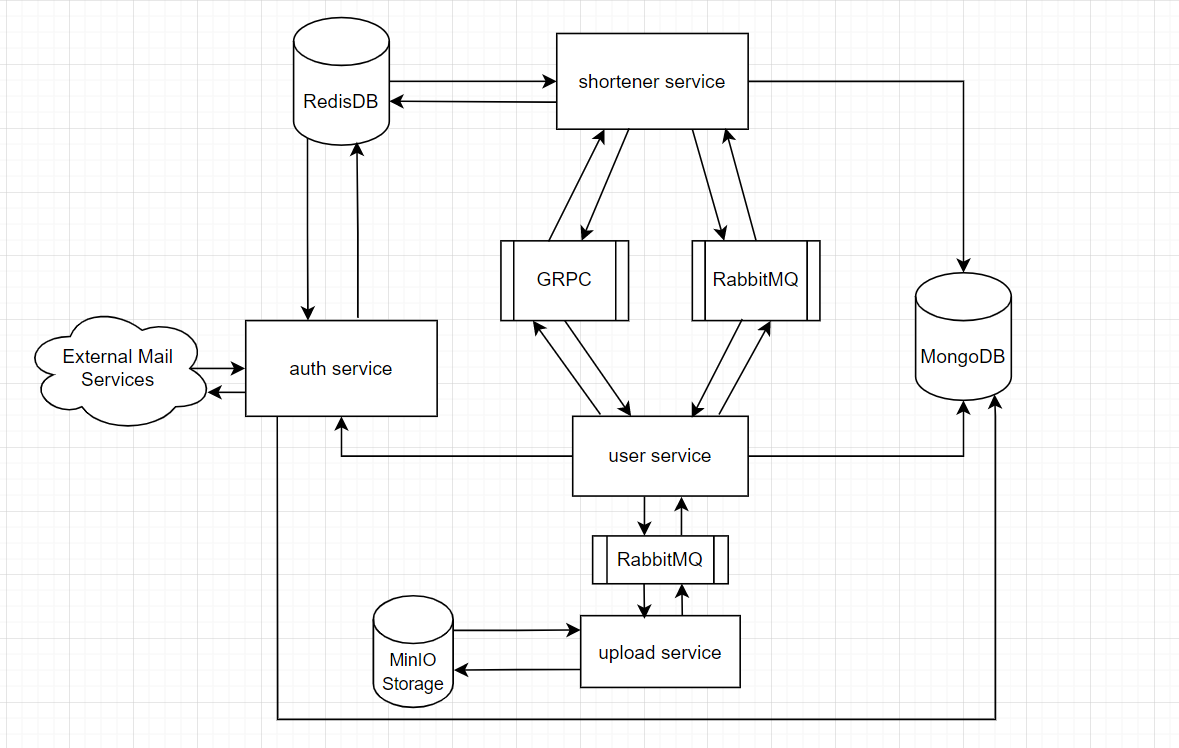

Architecture Overview

Services

Service	Framework	Port	Description
Auth	Gin	8080	Registration, login, email verification, password reset
Shortener	Echo	8081	Short URL resolution & redirect, visitor tracking
User	Fiber	8082	Profile management, dashboard, short link CRUD
Upload	—	Consumer	Avatar upload via MinIO (RabbitMQ consumer)

Infrastructure

Component	Role
NGINX	API Gateway — SSL termination, rate limiting, CORS, path-based routing
MongoDB	Primary database
Redis	Caching & verification code storage
RabbitMQ	Async messaging (shortener CRUD, avatar uploads)
gRPC	Inter-service communication (User ↔ Shortener)
Jaeger	Distributed tracing (OpenTelemetry)
MinIO	S3-compatible object storage for avatars

API Gateway

All HTTP traffic goes through NGINX on ports :80 (→ HTTPS redirect) and :443.

External Path	Internal Service	Description
/{code}	Shortener	Root-level redirect (shortest URL)
/s/{code}	Shortener	Redirect alias
/api/v1/auth/*	Auth	Authentication endpoints
/api/v1/shortener/*	Shortener	Shortener API
/api/v1/user/*	User	User management API
/health	NGINX	Gateway health check

Features: SSL/TLS termination, rate limiting (10 req/s per IP, burst 20), centralized CORS, HTTP → HTTPS redirect.

Main Features

1. Register — Email verification with branded HTML emails
2. Login — JWT-based authentication
3. Forgot / Reset Password — Email-based password recovery
4. User Profiles — View & edit profile, avatar upload
5. User Dashboard — Analytics on short link visitor counts
6. URL Shortener — Generate, update, delete short links
7. Short URL Redirect — Root-level (/{code}) for ultra-short URLs

Tech Stack

Category	Technology
Language	Go 1.25
HTTP Frameworks	Gin, Echo, Fiber
Database	MongoDB
Cache	Redis
Message Broker	RabbitMQ
Inter-service	gRPC + Protobuf
API Gateway	NGINX (SSL, Rate Limiting)
Object Storage	MinIO
Tracing	Jaeger (OpenTelemetry)
Containerization	Docker & Docker Compose

Prerequisites

1. Docker & Docker Compose installed on your machine
2. Rename example.env to .env inside each service directory
3. Fill your SMTP configuration in the auth .env (uncomment the SMTP lines)
4. Generate SSL certificates for the NGINX gateway :

   bash nginx/certs/generate-certs.sh

Setup

1. Build all services :

   make build

2. Build & Run all services in background :

   make run

3. Stop all services :

   make stop

4. Stop & Remove all services and volumes :

   make remove

API Testing

Import the Postman collection to test all endpoints :

singkatin-api.postman_collection.json

Collection variables :

Variable	Description
base_url	Gateway host (default: localhost)
access_token	Auto-populated after login
verify_code	Email verification code
short_id	Short link ID for update/delete
short_url	Short URL code for redirect testing

License

MIT
