Screen flickering/blinking after updating to esp32-core-3.3.6 (OK with esp32-core-3.3.5) - M5Stack Tab5 #185
Description
Answers checklist.
- I have read the documentation ESP-IDF Programming Guide and the issue is not addressed there.
- I have updated my IDF branch (master or release) to the latest version and checked that the issue is present there.
- I have searched the issue tracker for a similar issue and not found a similar issue.
IDF version.
v5.5.2.260116
Espressif SoC revision.
ESP32-C6
Operating System used.
Windows
How did you build your project?
Other (please specify in More Information)
If you are using Windows, please specify command line type.
None
Development Kit.
M5Stack Tab5
Power Supply used.
USB
What is the expected behavior?
I expected no flickering
What is the actual behavior?
Board
esp32-p4-evboard
Device Description
Note that I dont think there is a a board available for M5Stack tab5 as described in their example
Let me know if this issue in on the wrong repository.
Hardware Configuration
N/A
Version
v3.3.6
Type
Task
IDE Name
VSCode
Operating System
WIndows (WSL)
Flash frequency
40MHz
PSRAM enabled
yes
Upload speed
1500000
Description
PROBLEM DESCRIPTION
Since updating to platform-espressif32@55.03.36, the display is constantly blinking/flashing on M5Stack devices. The same code works perfectly fine with platform-espressif32@55.03.35.
I am creating this issue on this repo as recommended by @me-no-dev in the comment: espressif/arduino-esp32#12417 (comment)
If you compare both file: https://github.com/pioarduino/platform-espressif32/blob/55.03.36/platform.json and https://github.com/pioarduino/platform-espressif32/blob/55.03.35/platform.json
There is likely a regression in the esp-idf - Issue in https://github.com/pioarduino/esp-idf/releases/download/v5.5.2.260116/esp-idf-v5.5.2.tar.xz but its ok in this version https://github.com/pioarduino/esp-idf/releases/download/v5.5.1.251215/esp-idf-v5.5.1.tar.xz
The issue occurs consistently across all examples, not just specific to one project.
TO REPRODUCE
- Update platformio.ini to use platform-espressif32 @ 55.03.36
- Flash any M5Stack example to the device (tested with M5GFX BarGraph example)
- Observe screen flickering/blinking
Here is my template
[env:m5stack_tab5]
platform = https://github.com/pioarduino/platform-espressif32.git#55.03.36
board = esp32-p4-evboard
upload_speed = 1500000
monitor_speed = 115200
build_flags =
${env.build_flags}
-I ${PROJECT_DIR}/examples/TFT_TideDisplay
-DBOARD_HAS_PSRAM
-DCORE_DEBUG_LEVEL=0
-DARDUINO_USB_CDC_ON_BOOT=1
-DARDUINO_USB_MODE=1
lib_deps =
m5stack/M5Unified @ ^0.2.13
m5stack/M5GFX @ ^0.2.19
paulstoffregen/Time @ ^1.6.1
EXPECTED BEHAVIOUR
Display should render smoothly without flickering, as it does on v55.03.35

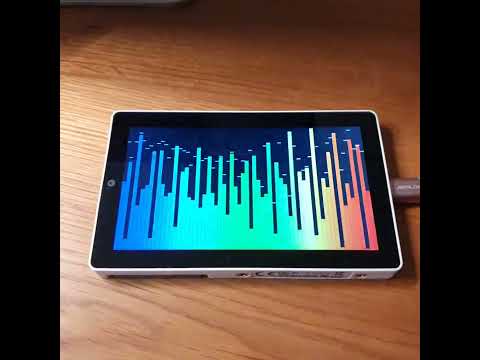

SCREENSHOTS
Screen continuously flickers/blinks, making the display unusable
ADDITIONAL CONTEXT
- Platform Version: platform-espressif32@55.03.36
- Previously Working Version: platform-espressif32@55.03.35
- Device: M5Stack Tab5
- Framework: PlatformIO with ESP-IDF
The regression appears to be introduced in the 55.03.36 release. A revert to 55.03.35 resolves the issue immediately.
Same issue on the current main branch (3.3.7)
Key differences between 55.03.35 and 55.03.36
(Please, remember to close the issue when the problem has been addressed)
Sketch
https://github.com/m5stack/M5GFX/blob/master/examples/Basic/BarGraph/BarGraph.inoDebug Message
N/A
Other Steps to Reproduce
No response
I have checked existing issues, online documentation and the Troubleshooting Guide
- I confirm I have checked existing issues, online documentation and Troubleshooting guide.
Steps to reproduce.
See above
Debug Logs.
Diagnostic report archive.
No response
More Information.
No response
